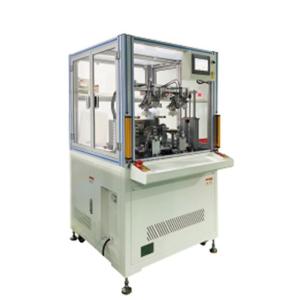

High Productivity Six VDO Winding Machine with 110mm Applicable Stator Outer Diameter

Name: High Productivity Six VDO Winding Machine with 110mm Applicable Stator Outer Diameter
Brand: pingsheng
Price: 16 USD

Cheap High Productivity Six VDO Winding Machine with 110mm Applicable Stator Outer Diameter for sale

Condition : New

Max. Load (KG) : 10 KG

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 years

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear

Coil Type : sofa spring coiling

Length of Axis (mm) : 1 mm

Center Height (mm) : 2 mm

Max.Transformer Capacity(kVA) : 5 kVA

Place of Origin : Guangdong, China

Brand Name : pingsheng

CNC or Not : CNC

Motor Power (kw) : 4

Weight (KG) : 370

Dimension(L*W*H) : 960*700*1750

Wire Diameter Range (mm) : 0 - 0.8 mm

Warranty : 1 Year

Key Selling Points : High Productivity

Applicable Industries : Manufacturing Plant

Showroom Location : None

Applicable Stator Thickness : 30-80mm

Applicable Motor Poles : 6.8.9.10.12..poles

Applicable Stator Outer Diameter : 110mm

Wire Cutting Method : Cut off

Number Of Stations : 1 stations

Number Of Control Axes : 5-axis control

Flying Fork Speed : Max200rpm/min

Input Power : Single-phase AC220V±10% 50Hz

Wire accuracy : 0.01mm

Price : $16,000.00/sets

MOQ : 1

Contact Now

Marketing Campaign

High Productivity Six VDO Winding Machine with 110mm Applicable Stator Outer Diameter

Product Paramenters

item	value
Condition	New
	10KG
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 years
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Gear
	sofa spring coiling
	1mm
	2mm
	5kVA
Place of Origin	China
	Guangdong
	pingsheng
CNC or Not	CNC
	4
	370
	9607001750
	0mm - 0.8mm
Warranty	1 Year
Key Selling Points	High Productivity
Applicable Industries	Manufacturing Plant
Showroom Location	None
Applicable Stator Thickness	30-80mm
Applicable Motor Poles	6.8.9.10.12..poles
Applicable Stator Outer Diameter	110mm
Wire Cutting Method	Cut off
Number Of Stations	1 stations
Number Of Control Axes	5-axis control
Flying Fork Speed	Max200rpm/min
Input Power	Single-phase AC220V±10% 50Hz
Wire accuracy	0.01mm

Company Profile

Certifications

PS-W212

It is used for the processing of power tools, model airplanes, motors, etc. It is suitable for winding processing of brushless iron cores; The position of the tooling is controlled by servo motors; the winding is smooth; Open programming: easy to learn; All electronic control and mechanical accessories of the equipment are made of first-line mainstream brands

PS-W205

The main body of the equipment is cast by an integrated module, which has high strength and good stability. All electronic control and mechanical accessories of the equipment are made of first-line mainstream brands The mold rod adopts unique self-locking technology, which makes it easy to pick and place the stator The fixture adopts a modular design and can be quickly replaced Safety protective cover, safe, simple and beautiful It is suitable for all kinds of cooling fans, DC brushless motors, magneto stators and other micro-motors with high-quality winding

PS-W201

Exhibition

Product packaging

Customer Feedback

With 15 years of industry experience and advanced technology, we have gained numbers of repeat customers due to their outstanding stability, efficiency and safety, moreover, they occupy 60% of the local market!

Our Advantages

Shenzhen Pingsheng Automation Equipment Co., Ltd.

Shenzhen Pingsheng Automation Equipment Co., Ltd. was located in Shenzhen, Guangdong,China,which is known as the capital of international trade.It is a national high-tech enterprise with 15 years of experience in R&D,production and sale various automatic winding machines. We have 1000 square meters workshop and a 10-member professional R&D team and advanced technical personnel,fully realized the independent production of various motor production equipment, and obtained a number of inventions, utility models and appearance patents. At the same time, we provide high-quality winding services,superior solutions and diversified technical consulting. The main products are: 2+2, 4+4, 6+6 AC, DC, 3D automatic winding machine, cooling fan winding machine, multi-station
stator internal and external winding machine, brushless motor winding machine,multipole winding machine and a serious of high-tech automatic winding machines.Also, we could provide efficient automation equipment production lin
